Overview

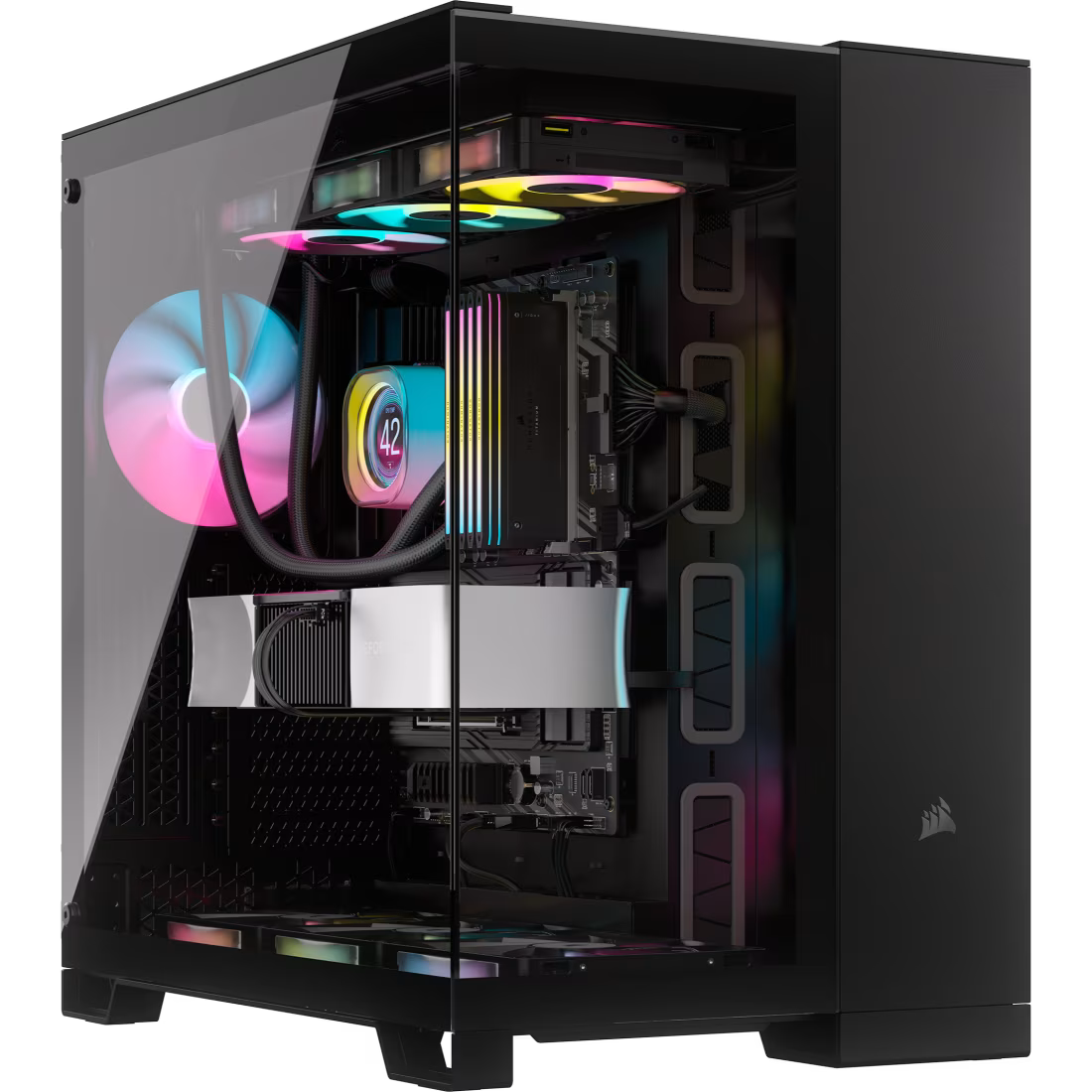

The CORSAIR 6500X Mid-Tower Dual Chamber PC Case delivers exceptional airflow and cooling with fully mesh paneling and a dual-chamber design for an organized, stunning build.

Key Features

• Dual chambers for a streamlined look
• Lots of customization options
• Compatible with reverse-connector motherboards (ASUS BTF, MSI PROJECT ZERO, GIGABYTE PROJECT STEALTH)
• Wide cooling flexibility

Tech Specs

Case Size: Mid-Tower
Case Supported: Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Material: Steel, Tempered Glass, Plastic
Color: Black, Black/Obsidian Aluminum, Black/Walnut, White, White/Bamboo, White/Satin Gray Aluminum
Dimensions (H × L × W): 496 × 481 × 328 mm
Weight: 16.4 kg

Compatibility

Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX
Case Power Supply: ATX
Maximum GPU Length: 400 mm
Maximum CPU Cooler Height: 190 mm
Maximum PSU Length: 225 mm
Expansion Slots: 8 horizontal (+4 vertical with optional kit)

Cooling Support

Radiator Support – Top: 360 / 280 / 240 mm
Radiator Support – Bottom: 360 / 280 / 240 mm
Radiator Support – Side: 360 / 240 mm
Radiator Support – Rear: 140 / 120 mm

Fan Support

Top: 3×120mm / 3×140mm
Bottom: 3×120mm / 3×140mm
Side: 3×120mm
Rear: 1×120mm / 1×140mm

Storage & I/O

Internal 3.5″ Bays: 2
Internal 2.5″ Bays: 2
Front I/O: USB-C 3.2 Gen2, 4× USB-A 3.2 Gen1, Audio In/Out

Additional

Reverse Connector Support: Yes
Dust Filtration: Yes
Cable Routing Space: 109 mm
Panels: Left – Tempered Glass / Right – Mesh
Warranty: 2 Years

Overview

The CORSAIR iCUE LINK 6500X RGB Mid-Tower Dual Chamber PC Case showcases your build through dual tempered glass panels and includes three pre-installed RX120 RGB fans.

Key Features

• Dual-chamber layout for a clean internal view
• iCUE LINK fan bundle included (3× RX RGB fans + system hub)
• Reverse-connector motherboard compatible
• Showcase tempered glass panels

Tech Specs

Case Size: Mid-Tower
Case Supported: Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Material: Steel, Tempered Glass, Plastic
Color: Black, White
Dimensions (H × L × W): 496 × 481 × 328 mm
Weight: 17.2 kg

Compatibility

Case Power Supply: ATX
Maximum GPU Length: 400 mm
Maximum CPU Cooler Height: 190 mm
Maximum PSU Length: 225 mm
Expansion Slots: 8 horizontal (+4 vertical with optional kit)

Cooling & Fans

Radiator Support: Up to 360mm (Top / Bottom / Side)
Included Fans: iCUE LINK RX Series
Fan Support matches 6500X layout

Storage & I/O

Internal 3.5″ Bays: 2
Internal 2.5″ Bays: 2
Front I/O: USB-C 3.2 Gen2, 4× USB-A 3.2 Gen1, Audio In/Out

Additional

Reverse Connector Support: Yes
Dust Filtration: Yes
Cable Routing Space: 109 mm
Panels: Left – Tempered Glass / Right – Mesh
Warranty: 2 Years

Overview

The CORSAIR 6500D AIRFLOW Mid-Tower Dual Chamber PC Case delivers unrivaled airflow with full mesh paneling and expansive cooling support.

Key Features

• Unrivaled airflow performance
• Dual-chamber internal layout
• Reverse-connector motherboard compatible
• Wide cooling flexibility

Tech Specs

Case Size: Mid-Tower
Case Supported: Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Material: Steel, Tempered Glass, Plastic
Color: Black, White
Dimensions (H × L × W): 496 × 481 × 328 mm
Weight: 16.9 kg

Cooling Support

Radiator Support – Front / Top / Bottom: Up to 360mm
Radiator Support – Side: 360 / 240 mm
Radiator Support – Rear: 140 / 120 mm

Fan Support

Front: 3×120mm / 2×140mm
Top: 3×120mm / 3×140mm
Bottom: 3×120mm / 3×140mm
Side: 3×120mm
Rear: 1×120mm / 1×140mm

Additional

Maximum GPU Length: 400 mm
Maximum CPU Cooler Height: 190 mm
Case Power Supply: ATX
Dust Filtration: Yes
Cable Routing Space: 109 mm
Panels: Left – Tempered Glass / Right – Mesh
Warranty: 2 Years
