Features

Apevia's Premier line of power supplies bring an elegant form and function to your system while still suiting your needs. Stable and reliable, it supports the newer ATX 12v2.3 standard and single rail setup. Boasting a cool 135mm RGB fan, it adds a nice glow to any computer. The Premier line also uses a hybrid modular cable setup, allowing you to use only the connectors that you need. No excessive tucking of wires required. Just put the unused plugs away for future use. It also uses Active PFC, with a 99% factor correction, boosting performance and saving energy. No toggle switch included, the power supply automatically switches between 110V and 230V depending on the power grid its attached to. 80+ Gold certified.

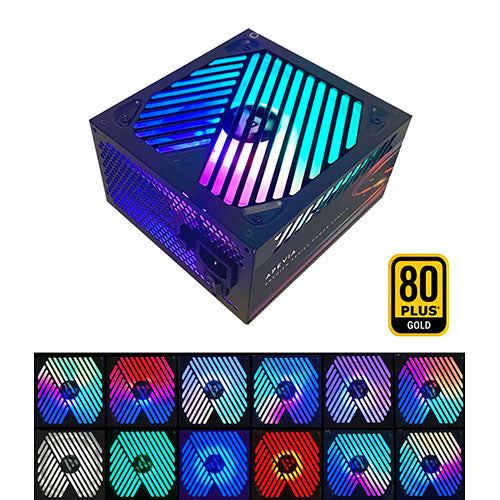

• 650W Power with 13.5cm RGB fan
• 80+ Gold certified
• High stability with 5% tolerance of 5V, 3.3V & 12V output
• Hybrid modular cable design
• High quality components and housing
• 20 + 4 pin main connector can be used for 20 pin or 24 pin
• 2 x 4/8 Pin ATX 12V connector
• 4 x 6+2 Pin PCI - Express
• 4 x SATA connector
• 4 x 4 pin peripheral connector
• 1 x floppy connector
• Each cable is removable
• Cables and accessories
• Heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)

IMPORTANT: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on.

IMPORTANT: The 8pin CPU connector can be split apart to become a 4+4 connector by pushing one end of the 4pin down and the other end of the 4pin up for motherboards that require a 4pin power connector.

IMPORTANT: The 8pin PCI-E GPU connector can be split apart to become a 6+2 connector by pushing one end of the 6pin down and the other end of the 2pin up for graphics cards that require a 6pin power connector.

IMPORTANT: The 24pin motherboard connector can be split apart to become a 20+4 connector by pushing one end of the 20pin down and the other end of the 4pin up for motherboards that require a 20pin power connector

Specifications

• Model No.
  • ATX-PM650W
• Max. Power
  • 650W
• Material
  • Metal
• Color
  • Black sandblasting coated case
• Switches
  • N/A
• Input
  • Voltage ranges:115-230V / Input freguency:50-60Hz / Input current:10A for 115VAC, 5A for 230VAC
• Output
  • +3.3V=20A / +5V=20A / +12V=54.1A / -12V=0.3A / +5VSB=2.5A
• Connectors
  • 1 x 20/24pin Main Power / 2 x 4/8 pin + 12V and EPS / 4 x SATA / 4 x Peripheral / 1 x Floppy / 4 x 6+2pin PCI Express
• Cooling
  • Forced air ventilation by 1 x 135mm RGB fan
• Dimension
  • 160mm x 150mm x 85mm (6.3" x 5.9" x 3.4") - L x W x H
• Weight
  • 5.0 lbs
• Package
  • 10 pcs/carton
• Cu'ft
  • 1.94 (per carton)

Features

Apevia's Premier line of power supplies bring an elegant form and function to your system while still suiting your needs. Stable and reliable, it supports the newer ATX 12v2.3 standard and single rail setup. Boasting a cool 135mm RGB fan, it adds a nice glow to any computer. The Premier line also uses a hybrid modular cable setup, allowing you to use only the connectors that you need. No excessive tucking of wires required. Just put the unused plugs away for future use. It also uses Active PFC, with a 99% factor correction, boosting performance and saving energy. No toggle switch included, the power supply automatically switches between 110V and 230V depending on the power grid its attached to. 80+ Gold certified.

• 850W Power with 13.5cm RGB fan
• 80+ Gold certified
• High stability with 5% tolerance of 5V, 3.3V & 12V output
• Hybrid modular cable design
• High quality components and housing
• 20 + 4 pin main connector can be used for 20 pin or 24 pin
• 2 x 4/8 Pin ATX 12V connector
• 4 x 6+2 Pin PCI - Express
• 4 x SATA connector
• 4 x 4 pin peripheral connector
• 1 x floppy connector
• Each cable is removable
• Cables and accessories
• Heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)

IMPORTANT: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on.

IMPORTANT: The 8pin CPU connector can be split apart to become a 4+4 connector by pushing one end of the 4pin down and the other end of the 4pin up for motherboards that require a 4pin power connector.

IMPORTANT: The 8pin PCI-E GPU connector can be split apart to become a 6+2 connector by pushing one end of the 6pin down and the other end of the 2pin up for graphics cards that require a 6pin power connector.

IMPORTANT: The 24pin motherboard connector can be split apart to become a 20+4 connector by pushing one end of the 20pin down and the other end of the 4pin up for motherboards that require a 20pin power connector

Specifications

• Model No.
  • ATX-PM850W
• Max. Power
  • 850W
• Material
  • Metal
• Color
  • Black sandblasting coated case
• Switches
  • N/A
• Input
  • Voltage ranges:115-230V / Input freguency:50-60Hz / Input current:10A for 115VAC, 5A for 230VAC
• Output
  • +3.3V=20A / +5V=20A / +12V=66A / -12V=0.3A / +5VSB=2.5A
• Connectors
  • 1 x 20/24pin Main Power / 2 x 4/8 pin + 12V and EPS / 4 x SATA / 4 x Peripheral / 1 x Floppy / 4 x 6+2pin PCI Express
• Cooling
  • Forced air ventilation by 1 x 135mm RGB fan
• Dimension
  • 160mm x 150mm x 85mm (6.3" x 5.9" x 3.4") - L x W x H
• Weight
  • 5.0 lbs
• Package
  • 10 pcs/carton
• Cu'ft
  • 1.94 (per carton)

Features

Apevia's Premier series of power supplies combines both style and performance, catering perfectly to your system requirements. This gaming power supply, boasting an impressive 80+ Gold certification, is equipped with the cutting-edge PCle 5.0 / Gen 5 12VHPWR 12+4 (12pin/16pin) GPU connector, ensuring a seamless power delivery to the most advanced PCIe 5.0 high-end graphics cards. It fully supports the latest ATX 12v2.3 standard and features a single rail setup for enhanced performance. With its sleek 135mm auto-thermally controlled RGB fan, it not only keeps your computer cool but also adds a captivating glow, offering a choice of 366 vibrant RGB lighting modes. The Premier line adopts a semi-modular cable configuration, enabling you to utilize only the necessary connectors, eliminating the need for excessive wire management. Any unused plugs can be conveniently stored for future use. Additionally, it incorporates Active PFC technology, boasting an impressive 99% power factor correction, leading to improved efficiency and energy savings. Gone are the days of manual toggling between voltage options; this power supply automatically adjusts between 110V and 230V based on the power grid it is connected to. It's essential to prioritize safety by avoiding overloading, abusing, or modifying the power supply unit.

• 850W Power with 13.5cm RGB fan
• 80+ Gold certified
• PCle 5.0 / Gen 5 12VHPWR PSU connector to deliver power to the most advanced PCIe 5.0 graphics cards
• ATX 3.0 Ready
• 366 RGB lighting modes (Hold RGB button until the 1st flash = Restart back to RGB Mode 1 / Hold RGB button until the 2nd flash = Off Mode)
• High stability with 5% tolerance of 5V, 3.3V & 12V output
• Hybrid modular cable design
• High quality components and housing
• 20 + 4 pin main connector can be used for 20 pin or 24 pin
• 2 x 4/8 Pin ATX 12V connector
• 1x PCle 5.0 / Gen 5 12VHPWR (12 pin+4 pin) GPU connector
• 4 x 6+2 Pin PCI - Express
• 4 x SATA connector
• 4 x 4 pin peripheral connector
• 1 x floppy connector
• Each cable is removable
• Cables and accessories
• Heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)

Specifications

• Model No.
  • ATX-PM850W PCIE5.0
• Max. Power
  • 850W
• Material
  • Metal
• Color
  • Black sandblasting coated case
• Switches
  • N/A
• Input
  • Voltage ranges:115-230V / Input freguency:50-60Hz / Input current:10A for 115VAC, 5A for 230VAC
• Output
  • +3.3V=20A / +5V=20A / +12V=66A / -12V=0.3A / +5VSB=2.5A
• Connectors
  • 1 x 20/24pin Main Power / 2 x 4/8 pin + 12V and EPS / 1x PCle 5.0, Gen 5 12VHPWR (12 pin+4 pin) GPU connector / 4 x SATA / 4 x Peripheral / 1 x Floppy / 4 x 6+2pin PCI Express
• Cooling
  • Forced air ventilation by 1 x 135mm RGB fan
• Dimension
  • 160mm x 150mm x 85mm (6.3" x 5.9" x 3.4") - L x W x H
• Weight
  • 4.95 lbs
• Package
  • 6 pcs/carton
• Cu'ft
  • 1.94 (per carton)

Features

Apevia's Premier line of power supplies bring an elegant form and function to your system while still suiting your needs. Stable and reliable, it supports the newer ATX 12v2.3 standard and single rail setup. Boasting a cool 135mm RGB fan, it adds a nice glow to any computer. The Premier line also uses a hybrid modular cable setup, allowing you to use only the connectors that you need. No excessive tucking of wires required. Just put the unused plugs away for future use. It also uses Active PFC, with a 99% factor correction, boosting performance and saving energy. No toggle switch included, the power supply automatically switches between 110V and 230V depending on the power grid its attached to. 80+ Gold certified.

• 1000W Power with 13.5cm RGB fan
• 80+ Gold certified
• High stability with 5% tolerance of 5V, 3.3V & 12V output
• Hybrid modular cable design
• High quality components and housing
• 20 + 4 pin main connector can be used for 20 pin or 24 pin
• 2 x 4/8 Pin ATX 12V connector
• 4 x 6+2 Pin PCI - Express
• 4 x SATA connector
• 4 x 4 pin peripheral connector
• 1 x floppy connector
• Each cable is removable
• Cables and accessories
• Heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)

IMPORTANT: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on.

IMPORTANT: The 8pin CPU connector can be split apart to become a 4+4 connector by pushing one end of the 4pin down and the other end of the 4pin up for motherboards that require a 4pin power connector.

IMPORTANT: The 8pin PCI-E GPU connector can be split apart to become a 6+2 connector by pushing one end of the 6pin down and the other end of the 2pin up for graphics cards that require a 6pin power connector.

IMPORTANT: The 24pin motherboard connector can be split apart to become a 20+4 connector by pushing one end of the 20pin down and the other end of the 4pin up for motherboards that require a 20pin power connector

Specifications

• Model No.
  • ATX-PM1000W
• Max. Power
  • 1000W
• Material
  • Metal
• Color
  • Black sandblasting coated case
• Switches
  • N/A
• Input
  • Voltage ranges:115-230V / Input freguency:50-60Hz / Input current:10A for 115VAC, 5A for 230VAC
• Output
  • +3.3V=20A / +5V=20A / +12V=83.3A / -12V=0.3A / +5VSB=2.5A
• Connectors
  • 1 x 20/24pin Main Power / 2 x 4/8 pin + 12V and EPS / 4 x SATA / 4 x Peripheral / 1 x Floppy / 4 x 6+2pin PCI Express
• Cooling
  • Forced air ventilation by 1 x 135mm RGB fan
• Dimension
  • 160mm x 150mm x 85mm (6.3" x 5.9" x 3.4") - L x W x H
• Weight
  • 5.0 lbs
• Package
  • 10 pcs/carton
• Cu'ft
  • 1.94 (per carton)

Features

Apevia's Premier series of power supplies combines both style and performance, catering perfectly to your system requirements. This gaming power supply, boasting an impressive 80+ Gold certification, is equipped with the cutting-edge PCle 5.0 / Gen 5 12VHPWR 12+4 (12pin/16pin) GPU connector, ensuring a seamless power delivery to the most advanced PCIe 5.0 high-end graphics cards. It fully supports the latest ATX 12v2.3 standard and features a single rail setup for enhanced performance. With its sleek 135mm auto-thermally controlled RGB fan, it not only keeps your computer cool but also adds a captivating glow, offering a choice of 366 vibrant RGB lighting modes. The Premier line adopts a semi-modular cable configuration, enabling you to utilize only the necessary connectors, eliminating the need for excessive wire management. Any unused plugs can be conveniently stored for future use. Additionally, it incorporates Active PFC technology, boasting an impressive 99% power factor correction, leading to improved efficiency and energy savings. Gone are the days of manual toggling between voltage options; this power supply automatically adjusts between 110V and 230V based on the power grid it is connected to. It's essential to prioritize safety by avoiding overloading, abusing, or modifying the power supply unit.

• 1000W Power with 13.5cm RGB fan
• 80+ Gold certified
• PCle 5.0 / Gen 5 12VHPWR PSU connector to deliver power to the most advanced PCIe 5.0 graphics cards
• ATX 3.0 Ready
• 366 RGB lighting modes (Hold RGB button until the 1st flash = Restart back to RGB Mode 1 / Hold RGB button until the 2nd flash = Off Mode)
• High stability with 5% tolerance of 5V, 3.3V & 12V output
• Hybrid modular cable design
• High quality components and housing
• 20 + 4 pin main connector can be used for 20 pin or 24 pin
• 2 x 4/8 Pin ATX 12V connector
• 1x PCle 5.0 / Gen 5 12VHPWR (12 pin+4 pin) GPU connector
• 4 x 6+2 Pin PCI - Express
• 4 x SATA connector
• 4 x 4 pin peripheral connector
• 1 x floppy connector
• Each cable is removable
• Cables and accessories
• Heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)

Specifications

• Model No.
  • ATX-PM1000W PCIE5.0
• Max. Power
  • 1000W
• Material
  • Metal
• Color
  • Black sandblasting coated case
• Switches
  • N/A
• Input
  • Voltage ranges:115-230V / Input freguency:50-60Hz / Input current:10A for 115VAC, 5A for 230VAC
• Output
  • +3.3V=20A / +5V=20A / +12V=66A / -12V=0.3A / +5VSB=2.5A
• Connectors
  • 1 x 20/24pin Main Power / 2 x 4/8 pin + 12V and EPS / 1x PCle 5.0, Gen 5 12VHPWR (12 pin+4 pin) GPU connector / 4 x SATA / 4 x Peripheral / 1 x Floppy / 4 x 6+2pin PCI Express
• Cooling
  • Forced air ventilation by 1 x 135mm RGB fan
• Dimension
  • 160mm x 150mm x 85mm (6.3" x 5.9" x 3.4") - L x W x H
• Weight
  • 5 lbs
• Package
  • 6 pcs/carton
• Cu'ft
  • 1.94 (per carton)

Features

Apevia's Premier 1200W line of power supplies is meticulously engineered to deliver exceptional gaming performance and enhanced sturdiness to meet the requirements of high-powered PC gaming systems. This gaming PSU is primed for PCle 5.0 & ATX 3.0 compatibility and proudly showcases an impressive 80+ Gold tested certification. It boasts 100% premium Japanese electrolytic capacitors, elevating its strength and reliability. The power supply comes equipped with the newest PCIE 5.0 Gen 5 12VHPWR 12+4 (12pin/16pin) GPU connector, guaranteeing seamless power delivery to cutting-edge PCIe 5.0 high-end graphics cards. Its streamlined 135mm auto-thermally regulated RGB fan, engineered with FDB (Fluid Dynamic Bearing), ensures outstanding cooling and extends the fan's life expectancy, while simultaneously offering an array of 366 vibrant RGB lighting modes to select from, creating a captivating luminous display. The Apevia Premier features a fully modular cable setup, allowing you to solely employ the indispensable connectors and streamlining wire organization. Unused plugs can be effortlessly stowed away for future needs. Furthermore, it incorporates Active PFC technology, boasting an impressive 99% power factor correction, augmenting efficiency and leading to significant energy savings. The power supply intelligently switches between 110V and 230V based on the power grid connection, eliminating the need for manual voltage adjustments. Additionally, the PSU flaunts an imprinted Apevia logo and a one-of-a-kind vent design, bestowing it with a deluxe touch. With 366 selectable lighting modes, including RGB Cycle, Breathe Cycle, Breathe Mode, RGB Mode, Solid Colors (Red, Blue, Green, Pink, Orange, White, Off Mode, and more), changing the lighting ambiance is as straightforward as pressing a button on the back of the power supply!

• 1200W Power & 135mm FDB (Fluid Dynamic Bearing) RGB fan for superior cooling & longer fan life span.
• 80+ Gold certified
• Fully modular power supply design (Ability to connect only the essential cables)
• ATX 3.0 + PCIE 5.0 Ready, includes Gen 5 12VHPWR PSU connector to deliver power to the most advanced PCIe 5.0 graphics cards
• 366 RGB lighting modes (Hold RGB button until the 1st flash = Restart back to RGB Mode 1 / Hold RGB button until the 2nd flash = Off Mode)
• High stability with 5% tolerance of 5V, 3.3V & 12V output
• High quality components and housing (100% High quality Japanese capacitors)
• 20 + 4 pin main connector can be used for 20 pin or 24 pin
• 1x Modular PCle 5.0 / Gen 5 12VHPWR (12 pin+4 pin) GPU connector
• Each cable is removable
• Cables and accessories
• Complete heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)

Specifications

• Model No.
  • ATX-PM1200W ATX 3.0 & PCIE5.0
• Max. Power
  • 1200W
• Material
  • Metal
• Color
  • Black sandblasting coated case
• Switches
  • RGB LED Switch Button
• Input
  • Voltage ranges:115-230V / Input freguency:50-60Hz / Input current:10A for 115VAC, 5A for 230VAC
• Output
  • +3.3V=20A / +5V=20A / +12V=83.3A / -12V=0.3A / +5VSB=3A
• Connectors
  • 1 x (18+10) 28Pin to (20+4) 24Pin Main Power, 2x 8Pin to (4+4) 8Pin EPS 12V, 2x 8Pin to 2x (6+2) 8Pin PCI Express, 1x PCIE5.0 (12+4) 16Pin 12VHPWR, 2x 6Pin to 3x SATA, 1x 6Pin to 4x Molex
• Cooling
  • Forced air ventilation by 1 x 135mm FDB (Fluid Dynamic Bearing) RGB fan
• Dimension
  • 280mm x 190mm x 114mm (11" x 7.5" x 4.5") - L x W x H
• Weight
  • 6.80 lbs
• Package
  • 6 pcs/carton
• Cu'ft
  • 0.206 (per box)
