World class quiet and efficiency

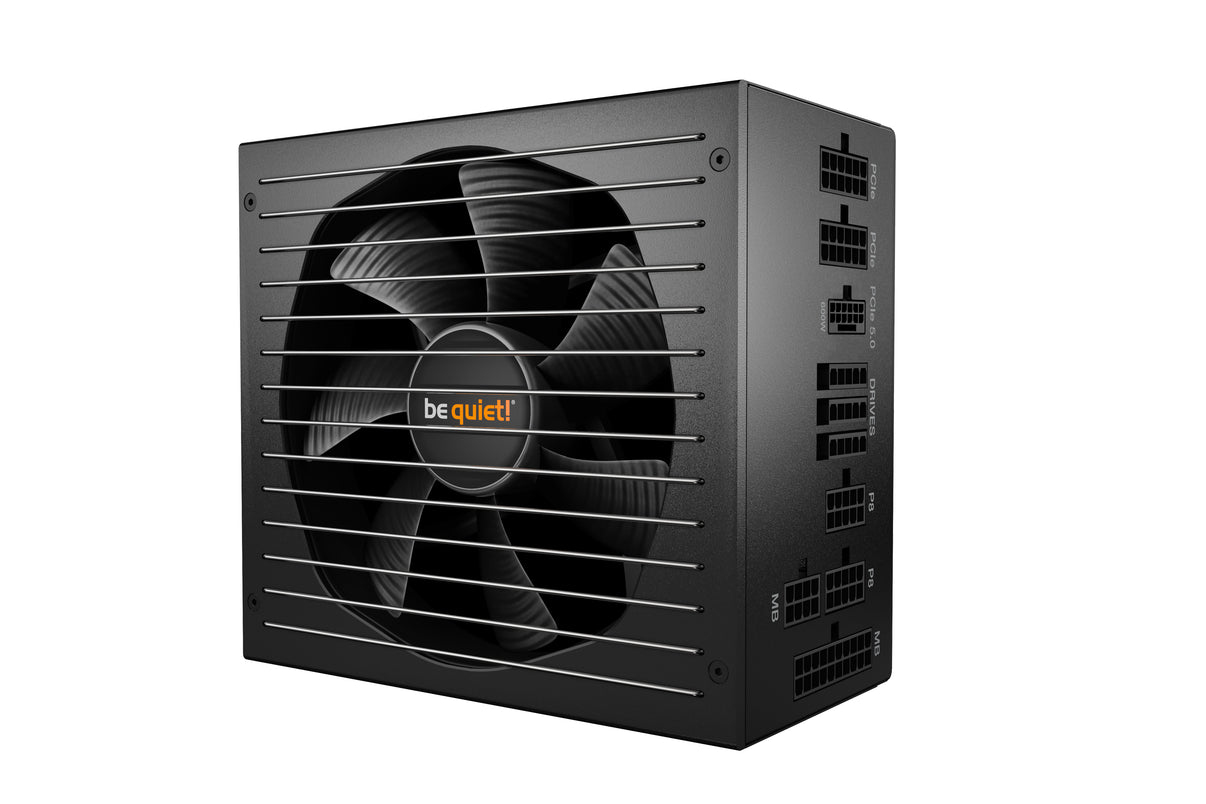

Straight Power 12 is a future-proof ATX 3.1 power supply with 80 PLUS® Platinum certification and virtually inaudible operation.
Highlights
- 80 PLUS Platinum efficiency (up to 93.7%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Handles massive power excursions
- Virtually inaudible Silent Wings 135mm fan
- Funnel-shaped fan opening on PSU case for high airflow intake
- Full bridge LLC technology for unmatched signal stability
- One massive high-performance 12V-rail
- Japanese 105°C capacitors ensure highest stability and reliability
- Modular cable management for maximum convenience
- 10-year manufacturer’s warranty
General data
Model: Straight Power 12 1200W
Continuous power (W): 1200
Peak power (W): 1270
Form factor: Version 3.1
EPS 12V Version: 2.92
Topology: Full bridge + LLC + SR + DC/DC
Digitally controlled: -
Voltage (Vac): 110 - 240
Frequency (Hz): 50 - 60
Input current (A): 15 / 7.5
Power factor at 100% load: >0.99
Modern standby: ✓
Power consumption in standby (W): 0.14
Average life time (h / 25°C): >100,000
Operating temperature up to (°C): 40
Efficiency
80 PLUS Certification: Platinum
2% load: 65.0%
10% load: 89.0%
20% load: 93.1%
50% load: 93.7%
100% load: 92.4%
Fan and cooling technology
Fan: Silent Wings
Fan size (mm): 135
Bearing technology: FDB
Motor technology: 6-pole fan motor
Max. fan speed (rpm): 2600
Noise dB(A) at 10% load: 9.4
Noise dB(A) at 20% load: 9.4
Noise dB(A) at 50% load: 9.8
Noise dB(A) at 100% load: 32.2
Output
Multi-rail operation (12V rails): -
12V single rail operation: ✓
+3.3V (A): 25
+5V (A): 25
+12V1 (A): 100
-12V (A): 0.5
+5Vsb (A): 3
Max combined power 12V (W): 1200
Max combined power 12V-2x6 (W): 800
Max combined 3.3V + 5V (W): 150
Hold-up time at 100% load (ms): 23.5
Hold-up time at 80% load (ms): 30.5
Power good signal (ms): 100 - 150
Cables and connectors
Modular cables: ✓
Sleeved cables: ✓
Flat cables: -
Maximum cable length (cm): 100
Cable length to motherboard (cm): 60
No. of cables: 10
ATX-Motherboard (20+4-pin): 1
P4+4 (CPU): 1
P8 (CPU): 1
12V-2x6 cables: 2
PCI-e 6+2-pin (GPU): 4
SATA: 9
PATA: 2
Protection
OTP: ✓
OCP: ✓
OPP: ✓
SCP: ✓
OVP: ✓
UVP: ✓
SIP: ✓
Safety certification
BSMI: ✓
CB: ✓
CCC: ✓
CE: ✓
cTUVus: ✓
FCC: ✓
TÜV: ✓
UKCA: ✓
Casing & Service
Dimensions without cable (L x W x H), (mm): 180 x 150 x 86
Weight (kg): 2.04
Color: Black
Warranty (Years): 10
Express replacement service in first year: DE, FR
International hotline / free of charge: ✓ / DE, FR, US
Logistics & RRP
Article number: BN517
EAN code: 4260052190302
Dimensions, package (L x W x H), (mm): 328 x 248 x 102
Gross weight, package (kg): 3.9
Pieces per packaging unit: 4
Dimensions, shipping box (L x W x H), (mm): 447 x 282 x 346
Gross weight, shipping box (kg): 17.0
RRP (€): 249.90
