Exceptional efficiency for Gamers

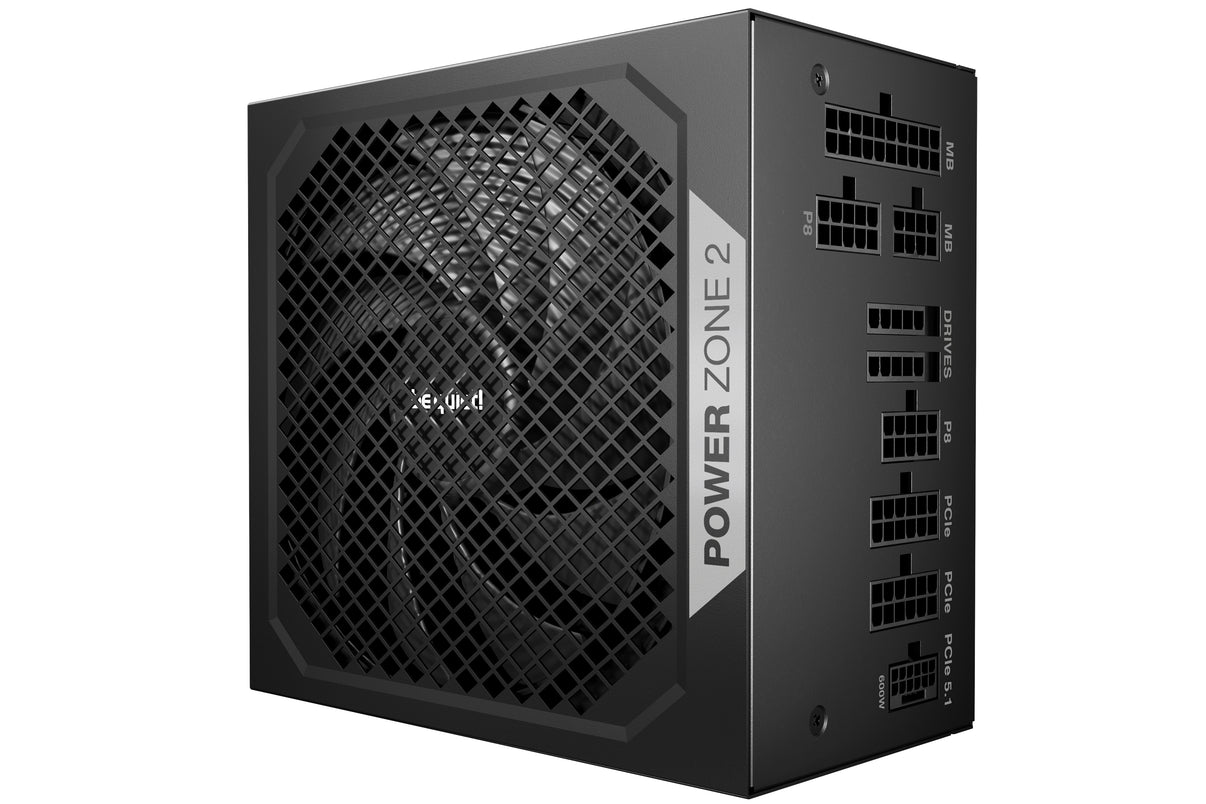

Power Zone 2 1200W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions.
Highlights
- 80 PLUS® Platinum and Cybenetics Platinum efficiency rating (up to 94.3%)
- Semi-passive zero-RPM cooling
- Fan runs on for 2-5 minutes to avoid frequent starting noise
- Pure Wings 3 140mm fan for quiet and efficient cooling
- 2 x 90° angled 12V-2x6 connectors and PCIe 5.1/ATX 3.1 compatibility
- Advanced voltage regulation and stability thanks to LLC technology
- Unique look with an unmistakable mesh design
- One massive high-performance 12V-rail
- 10-year manufacturer’s warranty
General data
Model: POWER ZONE 2 | 1200 W
Continuous power (W): 1200
Peak power (W): 1270
Form factor: ATX 3.1
EPS 12V Version: 2.92
Topology: LLC + SR + DC/DC
Digitally controlled: -
Voltage (Vac): 100 - 240
Frequency (Hz): 50 - 60
Input current (A): 15 / 7.5
Power factor at 100% load: >0.97
Modern standby: ✓
Power consumption in standby (W): <0.18
Average life time (h / 25°C): >100,000
Operating temperature up to (°C): 40
Efficiency
80 PLUS Certification: Platinum
Cybenetics ETA: Platinum
2% load: 63.3%
10% load: 89.8%
20% load: 93.2%
50% load: 94.3%
100% load: 92.7%
Fan and cooling technology
Cybenetics LAMBDA: A
Fan: Pure Wings 3
Fan size (mm): 140
Bearing technology: Rifle
Motor technology: 4-pole fan motor
Max. fan speed (rpm): 2100
Noise dB(A) at 10% load: 7.7
Noise dB(A) at 20% load: 7.7
Noise dB(A) at 50% load: 7.7
Noise dB(A) at 100% load: 25.5
Output
Multi-rail operation (12V rails): -
12V single rail operation: ✓
+3.3V (A): 20
+5V (A): 20
+12V1 (A): 100
-12V (A): 0.3
+5Vsb (A): 3
Max combined power 12V (W): 1200
Max combined power 12V-2x6 (W): 600
Max combined 3.3V + 5V (W): 120
Hold-up time at 100% load (ms): 20.42
Hold-up time at 80% load (ms): 26.22
Power good signal (ms): 100 - 150
Cables and connectors
Modular cables: ✓
Sleeved cables: ✓
Flat cables: ✓
Maximum cable length (cm): 100
Cable length to motherboard (cm): 60
No. of cables: 9
ATX-Motherboard (20+4-pin): 1
P4+4 (CPU): 1
P8 (CPU): 1
12V-2x6 cables: 2
PCI-e 6+2-pin (GPU): 3
SATA: 7
PATA: 1
Protection
OTP: ✓
OCP: ✓
OPP: ✓
SCP: ✓
OVP: ✓
UVP: ✓
SIP: ✓
Safety certification
BSMI: ✓
CB: ✓
CCC: ✓
CE: ✓
cTUVus: ✓
CU: ✓
FCC: ✓
RCM: ✓
TÜV: ✓
UKCA: ✓
Casing & Service
Dimensions without cable (L x W x H), (mm): 160 x 150 x 86
Weight (kg): 2.07
Color: Black
Warranty (Years): 10
Express replacement service in first year: DE, FR
International hotline / free of charge: ✓ / DE, FR, US
Logistics & RRP
Article number: BP030US
EAN code: 4260052193648
Dimensions, package (L x W x H), (mm): 328 x 248 x 102
Gross weight, package (kg): 3.47
Pieces per packaging unit: 6
Dimensions, shipping box (L x W x H), (mm): 282 x 651 x 346
Gross weight, shipping box (kg): 22.18
RRP (€): 229.90
